Sometimes you may need invoke a linux command from your C++ program and collect the output of the command. And then possibly the next step is to parse the output and do something interesting with it. To help us with this task we have a very handy linux system function called popen.

Today I am going to dive deep down the linux system function popen and see how we can utilise these for achieving the task in hand which is to be able to invoke a linux command from a C++ program and collect the output, maybe print it on the console.

Object modelling

Because it is C++ I will take an Object oriented approach which to model the program around C++ classes and structures. To start with let’s call our C++ program SystemAnalyser. Our SystemAnalyser class will have the below functionalities:

  1. Able to launch a Linux command
  2. Able to capture the output of the command
  3. Able to display the command on the console.

The above functionalities are quite simple and will good to start with. These are fairly simple operations and we will implement these with simple C++ class methods. So lets design the class.

#ifndef __SYSTEM_ANALYSER_H__
#define __SYSTEM_ANALYSER_H__
#include <string>
class SystemAnalyser
{
    public:
        SystemAnalyser();
        virtual void RunCommand(const char * command);
        virtual void StoreOutput(std::string& result);
        virtual void DisplayOutput();
        virtual ~SystemAnalyser();
};
#endif

The above is our blueprint for the SystemAnalyser class from the information we have will now. This I have declared in .h file and the plan is to have the implementation in a .cpp file later. Our skeleton cpp file looks like this at this point:

#include "SystemAnalyser.h"
SystemAnalyser::SystemAnalyser()
{
}
void SystemAnalyser::RunCommand(const char * command)
{
}
void SystemAnalyser::StoreOutput(std::string& result)
{
}
void SystemAnalyser::DisplayOutput()
{
}
SystemAnalyser::~SystemAnalyser()
{
}

Now we are going to write a short main.cpp and try to compile the code in a Linux prompt.

#include <iostream>
#include <memory>
#include "SystemAnalyser.h"
int main()
{
    std::cout << "Hello World" << std::endl;
    auto system = std::make_unique<SystemAnalyser>();
    system->RunCommand("ls -la");
    system->DisplayOutput();
    return 0;
}

Compile the skeleton

I am not going to write a makefile at this point as it would be a bit of overkill. So let’s try compile the above code from command line:

~/system_analysier/SystemAnalyser$ g++ --std=c++17 main.cpp SystemAnalyser.cpp -o system
~/system_analysier/SystemAnalyser$ ./system
Hello World

So at this point the program is not doing much except printing hello world and reasonably so because we have not really implemented anything. Now lets extend the RunCommand method to get it doing the real work.

We are going to use the Linux system function called popen for launching our command. You can have a read about what this functions do from the Linux man page. I will try to briefly discuss what these functions does in the following two paragraph.

Popen()

In a nutshell popen function does the following operations:

  • creates a pipe stream
  • creates a new process by fork()
  • invokes the Linux shell /bin/sh

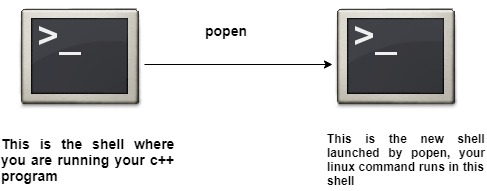

The pipe popen creates is unidirectional which essentially means either you can read it or write into it but not both. A pipe you can imagine like new stream of data which either you will generate by writing into the pipe or you will receive by reading the pipe. Popen takes a command string which is what we want to invoke in the shell. We need to be clear here that with popen we are actually invoking a new shell and then executing our command.

Implementation

Now with that brief background on popen() lets try implement our RunCommand() method. I will first show you a sample implementation and then try explaining it step by step. Here is the implementation:

std::string SystemAnalyser::RunCommand(const char * command)
{
    std::array<char, 128> buffer;
    std::string result;
    std::unique_ptr<FILE, decltype(&pclose)> pipe(popen(command, "r"), pclose);
    if (!pipe) {
        throw std::runtime_error("popen() failed!");
    }
    while (fgets(buffer.data(), buffer.size(), pipe.get()) != nullptr) {
        result += buffer.data();
    }
    std::cout << result << std::endl;
    return result;
}

In the above code snippet what we are doing is we are opening a pipe with the popen() function and collecting the pipe descriptor which popen returns in a pointer named pipe. This is just a name, instead of pipe you can also name the pipe descriptor as your first name or anything you like. Lets focus on the below line and try to understand what it is doing:

std::unique_ptr<FILE, decltype(&pclose)> pipe(popen(command, "r"), pclose);

In the above line of code we are using C++ smart pointer, unique_ptr() for holding the pipe descriptor as pipe descriptor is nothing but a pointer itself. The interesting part creating this unique_ptr is that we are passing a deleter as well and its type. A deleter is something which the C++ runtime uses to destroy the memory created by popen when the pointer goes out of scope. There are really two parts to understand in how the unique_ptr is being created as below:

  • specifying the type of the deleter
  • specifying the deleter

A deleter in this case is nothing but a function called pclose(). Pclose is a Linux system provided function. What we are telling the C++ compiler in the below code is that use the type of the deleter as been declared in the library:

std::unique_ptr<FILE, decltype(&pclose)>

That’s precisely what decltype does, it tells the compiler to consider the type of an object to be same as a previously specified type. In this case the type of the system function pclose() is known to the compiler as it has been included from the library. Now coming to specifying the deleter function. We are specifying the name of the library function pclose() here:

pipe(popen(command, "r"), pclose)

I am not going to explain the rest of the part of the smart pointer as that is not the focus here. So lets move on to the next part which is how to capture the output from the pipe.

To capture the output from the pipe we simply need to read the pipe using the pipe file descriptor. So first thing we need to check if we have a valid pipe descriptor, we do that as below:

if (!pipe) {
        throw std::runtime_error("popen() failed!");
}

As you can see we are checking if the pipe pointer is holding a non-zero value, if not this is not a valid pointer and we are throwing an exception with the error message.

We need a buffer to hold our output, so we are declaring a buffer here using C++ array data type.

std::array<char, 128> buffer;

It doesn’t have to be strictly an C++ type array, it could be a simple C type array for this purpose. But this is a C++ implementation so I used more C++ types than C.

To read from the pipe we use a Linux function called fgets(). This is the way we are reading the data from the pipe stream:

while (fgets(buffer.data(), buffer.size(), pipe.get()) != nullptr) {
        result += buffer.data();
}

What we are telling the fget() is where to put the read data, buffer.data() gives the raw pointer to the first element in the array (remember our array is named ‘buffer’), then telling it how many bytes to read, buffer.size() which is 128 bytes maximum. So with one fgets() call we can read maximum 128 bytes.

Now, lets look at the below line:

pipe.get()

If you are familiar with smart pointers in C++, you know that unique_ptr() is a manged pointer, hence it is not the actual raw pointer. So to get the actual pointer from the unique_ptr we need to use an accessor function called get(). So what the above line does is to return the underlying pointer which is our pipe descriptor required for reading from the pipe.

We are using a while loop for the reason that if there is more data than just 128 bytes in the pipe, fget will return a string and the loop will keep on running and reading more data from it until it becomes empty and fget() will encounter EOF and return a null pointer, at that point the loop will stop.

In each loop we keep appending the string read into a string type named ‘result’ in our implementation. At the end of the while loop the RunCommand function returns the complete string read from the pipe. We can store this string in a class member string type, lets call it outputStore and declare it in the private section of the SystemAnalyser class as below:

    private:
        std::string outputStore;

Now, our StoreOutput() function can contribute something by taking the result string as input and assigning it to the class member string outputStore. Obviously, not very path breaking but useful for explaining the concept here. So our StoreOutput() function looks like this now:

void SystemAnalyser::StoreOutput(std::string result)
{
    outputStore = result;
}

StoreOutput() is called within the RunCommand() class member function and hence it doesn’t have to be public. Hence, I would ideally move it to the private section of the class because I would not like to give any unnecessary member function access to the end user, hence my intention is to make as many function and variables private as possible. That is an OOP approach you may consider in your program as well.

Now, coming to the displaying the result part. It is very simple. Now, that our StoreOutput() function has stored the output in a class member string, display function just has to pass it to the cout object and that should be it. This is what we can do:

void SystemAnalyser::DisplayOutput()
{
    std::cout << outputStore << std::endl;
}

And finally this is how our friend RunCommand() and StoreOutput() functions looking like:

void SystemAnalyser::RunCommand(const char * command)
{
    std::array<char, 128> buffer;
    std::string result;
    std::unique_ptr<FILE, decltype(&pclose)> pipe(popen(command, "r"), pclose);
    if (!pipe) {
        throw std::runtime_error("popen() failed!");
    }
    while (fgets(buffer.data(), buffer.size(), pipe.get()) != nullptr) {
        result += buffer.data();
    }
    StoreOutput(result);
}
void SystemAnalyser::StoreOutput(std::string result)
{
    outputStore = result;
}

If you notice I have changed the return type of the RunCommand function from std::string to void because after storing the output as string in the class member outputStore there is no need to return the output.

So that is pretty much it. The source code can be downloaded from here.

Finally, a sample output of the above program should look like below:

VBR09@mercury:~/system_analysier/SystemAnalyser$ ./system
Hello World
total 64
drwxr-xr-x 2 VBR09 tpl_sky_pdd_jira_user  4096 Dec 23 18:51 .
drwxr-xr-x 4 VBR09 tpl_sky_pdd_jira_user  4096 Dec 23 14:20 ..
-rw-r--r-- 1 VBR09 tpl_sky_pdd_jira_user   683 Dec 23 18:51 SystemAnalyser.cpp
-rw-r--r-- 1 VBR09 tpl_sky_pdd_jira_user   329 Dec 23 18:49 SystemAnalyser.h
-rw-r--r-- 1 VBR09 tpl_sky_pdd_jira_user   244 Dec 23 14:22 main.cpp
-rwxr-xr-x 1 VBR09 tpl_sky_pdd_jira_user 44608 Dec 23 18:51 system

In the next blog we will expand the functionalities to include a output parser to have a better look at the interesting bits of the output.

Till then, bye!
